Microelectronics for Biosensors
Experts in microelectronic subassemblies and devices. Building a multi-functional micromedical device and incorporating the electronic circuits required to power it calls for proven expertise – from the earliest stages of design all the way to full-scale production.
Engineer-led design optimization from design guidance through validation.

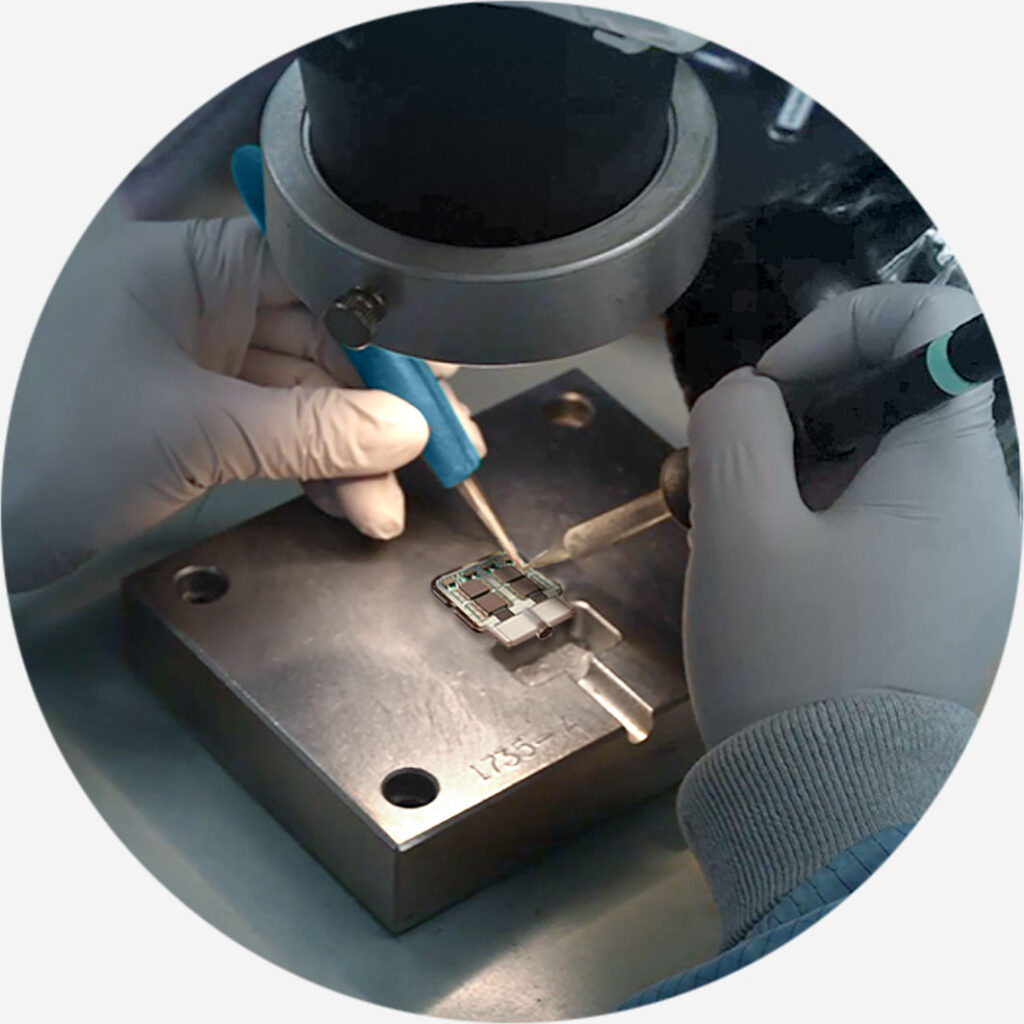

Our unparalleled experience in microelectronic assembly and circuit design comes from decades of helping device companies reduce product size while improving cost and time efficiencies. We help our partners overcome design challenges in microelectronic subassemblies and devices by incorporating ultra-fine pitch circuits with components down to 01005.
Key Capabilities
- Design expertise in high-density, multi-layer, ultra-fine pitch circuits
- 254-micron pitch with 100-micron solder balls
- Skilled at high-speed, automated PCB/Flex circuit assembly down to 01005 (0.010” x .005”)
- Micro-Via Dimensions 80um/178m (2mil dielectric)
- Optimized circuit design for ultra-low power consumption and miniaturization
- In-house, state of the art surface mount technology (SMT) pick-and-place machines to populate flex circuits or printed circuit boards
- The strongest welds and unsurpassed quality using in-house ball bonding and wedge bonding
- Assembly performed in ISO Class 8 tested controlled environments
Micromedical Capabilities
With over 250 million components and assemblies produced per year, we partner with industry-leading medical device companies to build world-class products that improve people’s lives.
Custom EM Sensors & Assemblies
What we do: Custom electromagnetic sensor designs to address EM performance and size requirements.
Why it matters: Meet induction, resistance, sensitivity, and localization goals while seamlessly integrating within interventional devices.
Precision Molding
What we do: Fully-automated high-volume capabilities, best-in-class needle and insert molding capabilities
Why it matters: Reduces assembly steps, speeds up timelines, and lowers costs for efficient market entry.
Microelectronics
What we do: Microelectronic assembly and circuit design, incorporating ultra-fine pitch circuits with components down to 01005.
Why it matters: Improve performance, reduce cost, and scale efficiently.
Polymer and Metal 3D Printing
What we do: We manufacture high-precision additives for both polymer and metal components.
Why it matters: Accelerates development timelines, reduces material waste, and enables design for intricate medical device components.
Automation
What we do: Design and integrate custom automation into our processes and workflow.
Why it matters: Reduces assembly steps, speeds up timelines, and lowers costs for efficient market entry.
Microcatheters and Access Sheaths
What we do: Precision-engineered microcatheters and access sheaths designed for enhanced navigation, trackability, and compatibility with interventional devices.
Why it matters: Improves procedural efficiency, ensures patient safety, and supports next-gen minimally invasive medical treatments.
